Site Setting Out Engineering

Site setting out services refer to the process of marking and defining the precise locations of elements on a construction site based on architectural and engineering plans. This process ensures that the construction of the building, road, infrastructure, or other project is aligned with the design specifications in terms of position, size, orientation, and level. It is a critical phase of any construction project, as it provides the reference points needed for accurate and consistent construction.

Key Elements of Site Setting Out Services:

Reference Points and Gridlines: Establishing control points to align the structure with the design.

Boundary Marking: Defining property and construction boundaries.

Foundation Layout: Marking excavation areas and foundation positions.

Utilities Positioning: Identifying locations for drainage, electrical, and water systems.

Levels and Elevations: Ensuring structures are built to the correct height and slope.

Dimensional Accuracy: Verifying distances, angles, and alignments match the plans.

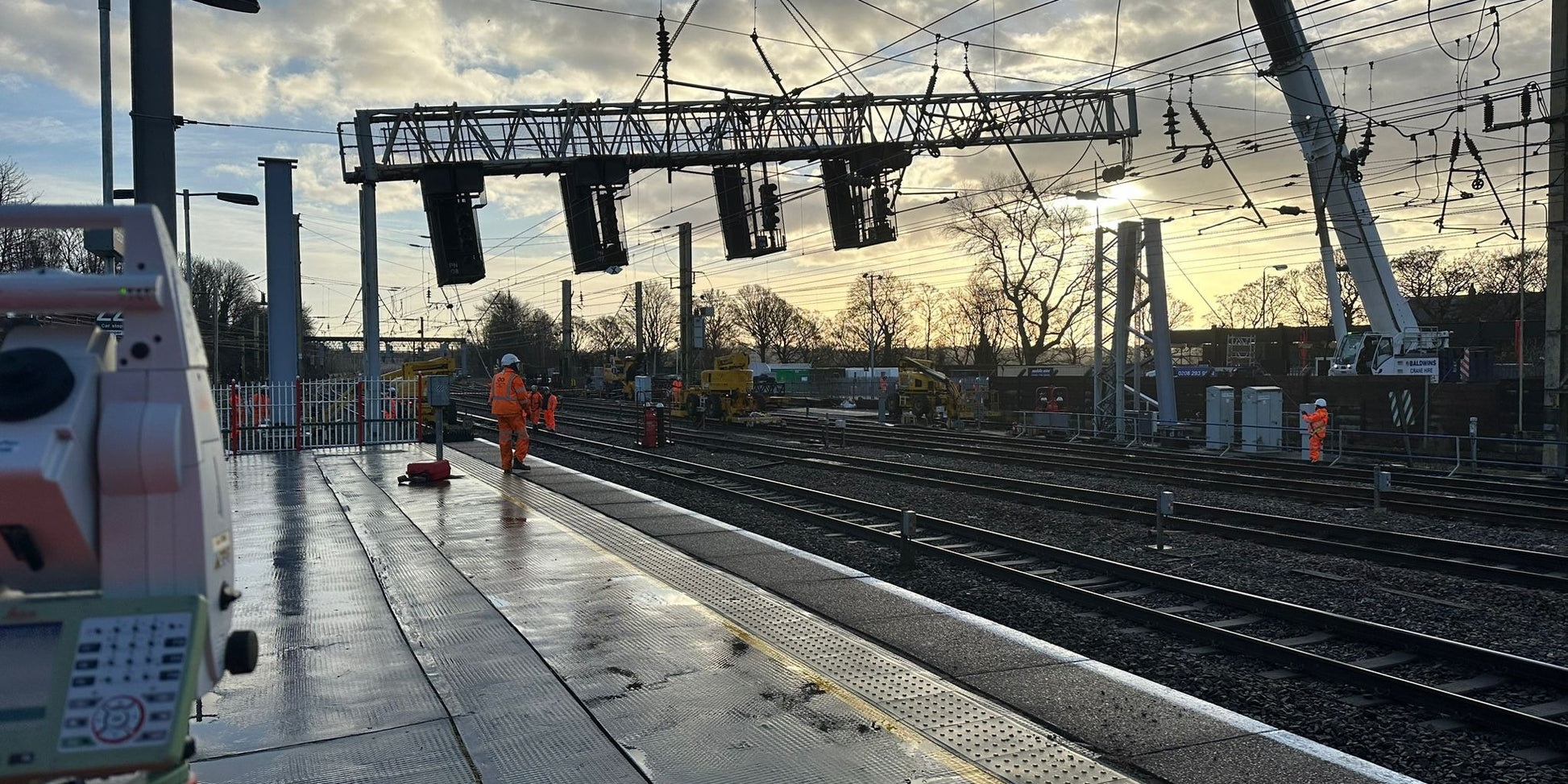

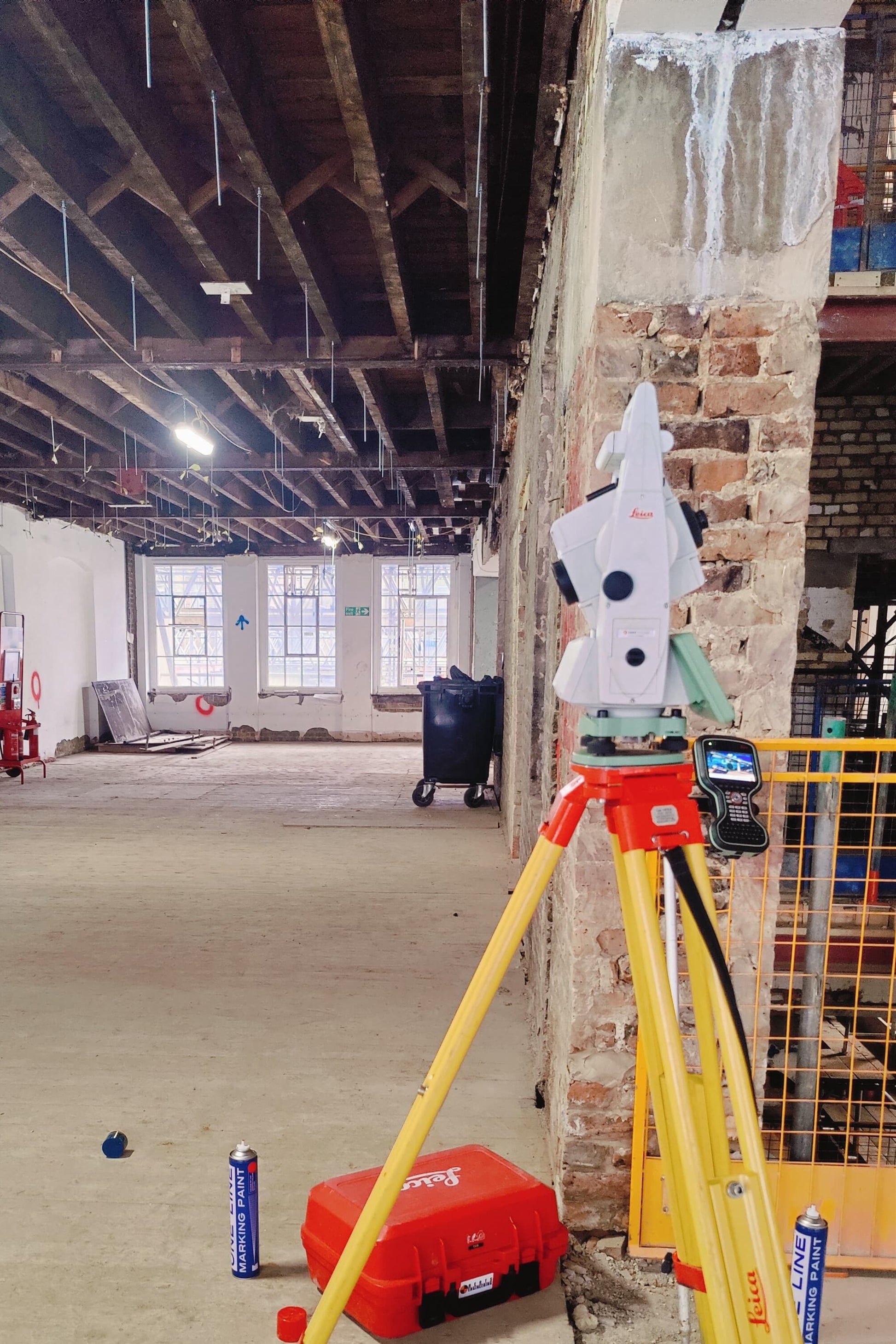

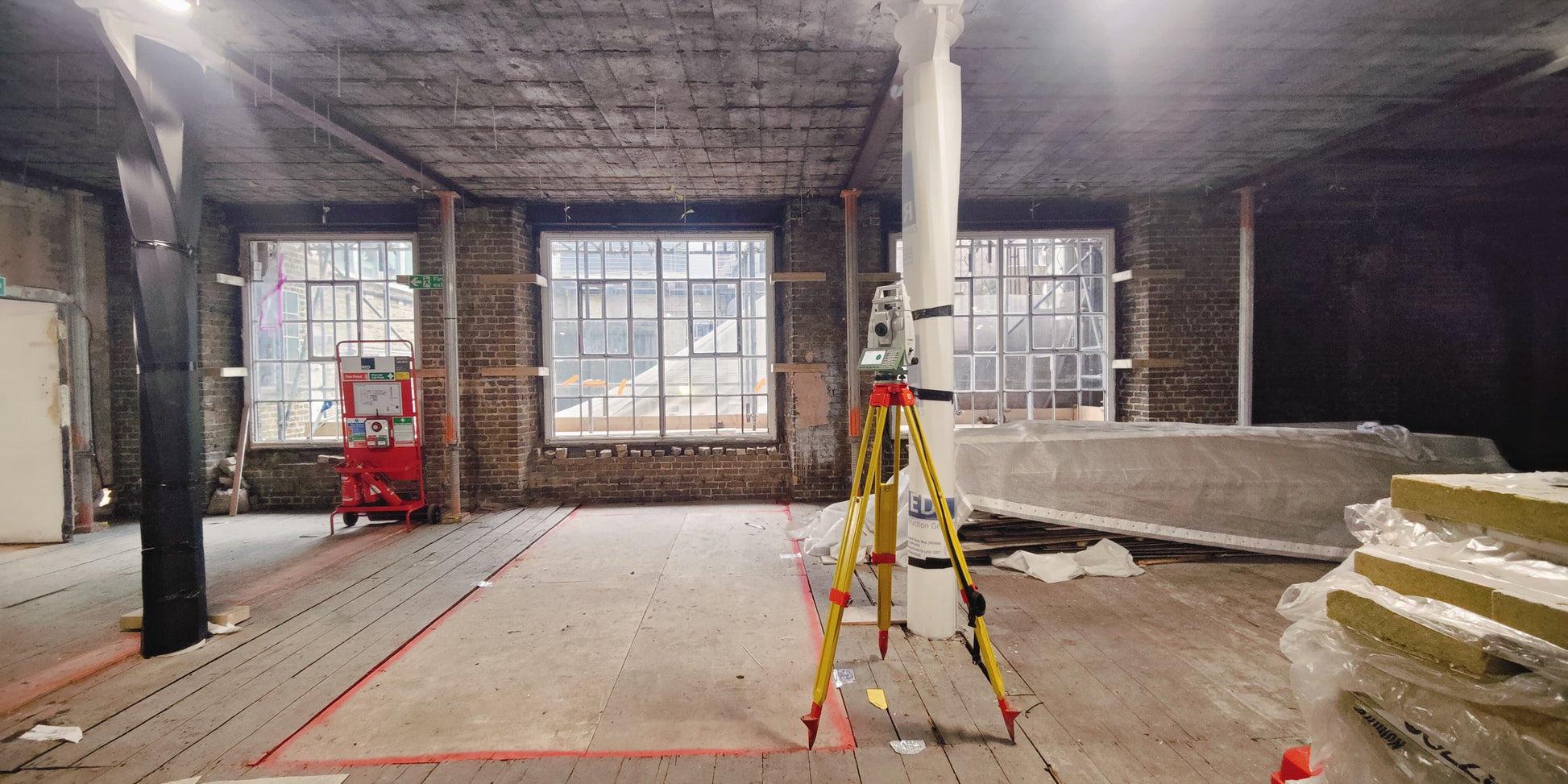

Survey Equipment: Using tools like total stations, GPS, and lasers for precision.
